Universal IR Virtual Thermostat

Virtual thermostat in Control4 for IR air conditioners, with an online model database, custom commands, presets and scheduling.

Control4Climate Control
Download and try free for 30 daysBuy a license

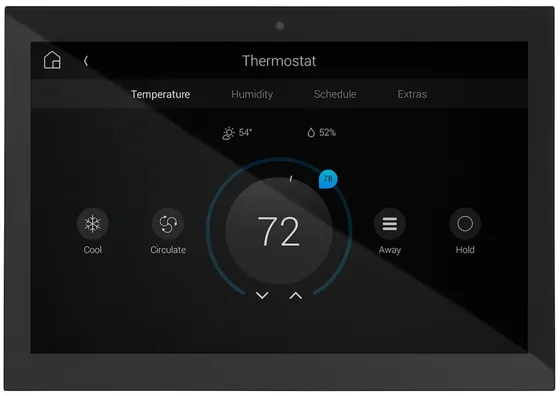

Universal IR Virtual Thermostat – driver Control4

Virtual thermostat driver for controlling air conditioners over IR. The driver looks up an online database with the list of compatible equipment, and new or updated models become available for selection automatically.

It accepts custom IR commands and is compatible with the ZoomDH Universal Thermostat Controller driver to control several thermostats at once.

Installation

  1. Choose the search method in “Select Search Method” (air conditioner brand/model or remote control model)
  2. Select the brand and model in “Device Brand” and “Device Model”, or the remote in “Remote Model”
  3. The driver configures itself automatically for the chosen equipment
  4. If desired, add extra IR commands in “Custom Commands”
  5. Optionally, connect a temperature sensor to “Temperature In”

Features

  • Virtual thermostat for IR air conditioners
  • Online database of brands, models and remote controls
  • Search by air conditioner brand/model or by remote control model
  • Custom IR commands in the Extras tab, with export and import
  • Presets and scheduling
  • Fan, dehumidify and swing modes
  • Button links to turn on, turn off and toggle without programming
  • Compatible with the Universal Thermostat Controller for groups

Release notes

  1. 20261014

    Thermostat list and IR codes loaded from the new site address (zoomdigitalhome.com.br), fixing the empty brand and model lists. The files are now served only to the driver.

  2. 20261012

    Licensing library update.

  3. 20260828

    Workaround for models without discrete on/off commands.

  4. 20260707

    Minor fixes.

  5. 316

    Made the Send Power On First command compatible with the SWING ON / SWING OFF version.

  6. 315

    Fixed an error in the decimal number conversion function.

  7. 314

    Fixed the conversion of temperatures using "," instead of "." as the decimal separator.

  8. 313

    Added support for the SWING ON and SWING OFF modes, in the Extras tab.

  9. 312

    Added support for fan speeds in dehumidify mode.

  10. 311

    Added support for fan speeds with a space in the name.

  11. 310

    Adjusted the Preset Changed event call.

  12. 309

    Added support for the multiple thermostat control driver.

  13. 308

    Added support for custom commands.

  14. 307

    Fixed the Send Power On First command.

  15. 306

    Added support for presets and schedules.

  16. 305

    Fixed an error in a temperature scale parameter variable.

  17. 304

    Fixed an error in the setpoint up and down commands.

  18. 303

    Adjusted the fan mode code.

  19. 302

    Added fan mode and the property to hide heating mode from the interfaces.

  20. 301

    Added device search by remote control model.

  21. 300

    Initial release.
